| 尺寸 | 分辨率 | 图片 | 产品型号 | 表面亮度 (cd/m2) |
显示区域(mm) W*H |
模组外形尺寸(mm) W*H*D |
接口方式 | 工作温度(°C) | 是否带触摸 | 备注 |
|---|---|---|---|---|---|---|---|---|---|---|
| 2.0 | 480*360 |  |
ZW-T020HCSA-01 | 350cd/m2 | 40.82*30.62 | 46.60*41.40*2.75 | 2 LANE MIPI | -20~+70 | NO | IPS |
| 2.0 | 320*240 |  |
ZW-T020LLI-01 | 350cd/m2 | 40.80*30.60 | 46.10*40.96*2.40 | MCU/RGB/SPI | -20~+70 | NO | IPS/宽温 |
| 2.0 | 240*320 |  |
ZW-T020HQS-04 | 250cd/m2 | 30.60*40.80 | 36.10*51.20*2.35 | MCU/RGB/SPI | -20~+70 | NO | IPS |
| 2.1 | 480*480 |  |
ZW-T021BCSA-01 | 250cd/m2 | 53.28*53.28 | 56.18*59.71*2.20 | 18bit RGB | -20~+70 | NO | 圆形屏/IPS |
| 2.4 | 240*320 |  |
ZW-T024HQI-18 | 250cd/m2 | 36.72*48.96 | 42.72*59.46*2.20 | MCU/RGB/SPI | -20~+70 | NO | IPS |

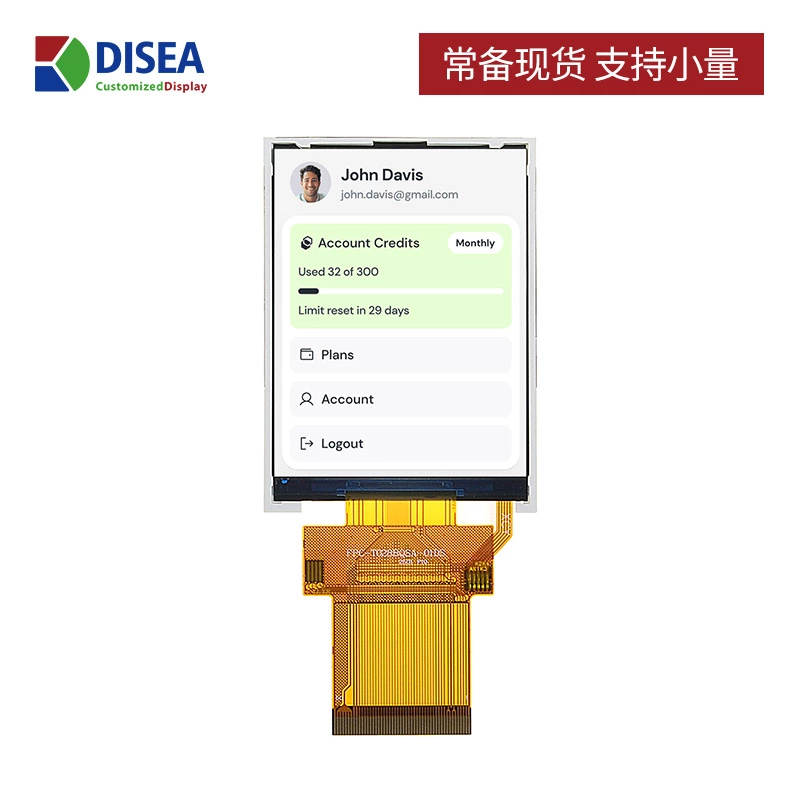

| 2.8 | 240*320 |  |
ZW-T028BQI-16 | 500cd/m2 | 43.20*57.60 | 76.80*63.90*3.05 | MCU/RGB/SPI | -20~+70 | NO | IPS/高亮 |

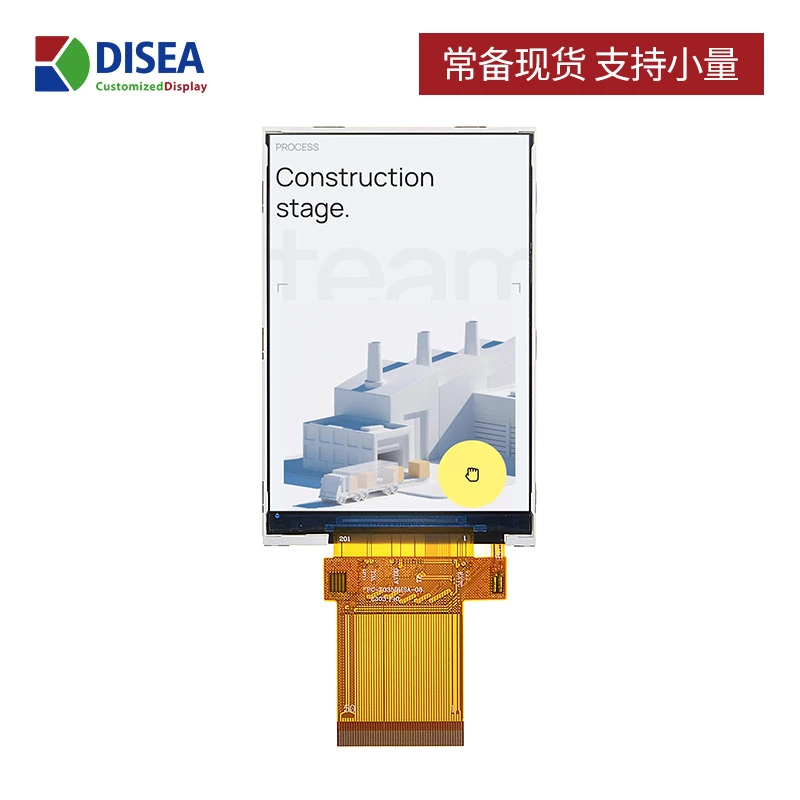

| 3.5 | 320*480 |  |
ZW-T035SHI-11 | 330cd/m2 | 48.96*73.44 | 54.48*84.71*2.15 | 18BIT RGB | -20~+70 | NO | IPS |
| 3.5 | 320*240 |  |
ZW-T035TLV-03P | 480cd/m2 | 70.0*52.56 | 76.90*64.00*4.25 | 24BIT RGB | -20~+70 | R-TP | IPS |
| 3.5 | 320*480 |  |
ZW-T035QHI-03CP | 300cd/m2 | 48.96*73.44 | 65.61*97.41*3.75 | MCU/RGB/SPI | -20~+70 | C-TP | IPS/电容触摸 |
| 3.5 | 640*480 |  |
ZW-T035SGV-01 | 500cd/m2 | 70.08*52.56 | 76.74*63.74*3.2 | 3 wire SPI+24bit RGB | -20~+70 | NO | IPS/高亮 |
| 3.5 | 320*240 |  |
ZW-T035HLS-01 | 300cd/m2 | 70.08*52.56 | 76.80*63.90*3.05 | 24bit RGB 54PIN | -20~+70 | NO | IPS |
| 3.5 | 320*480 |  |
ZW-T035QHI-19 | 360cd/m2 | 48.96*73.44 | 54.66*82.94*2.25 | MCU/RGB/SPI | -20~+70 | NO | IPS |
| 3.97 | 480*800 |  |
ZW-T397TVI-05 | 300cd/m2 | 51.84*86.40 | 57.14*96.85*1.80 | 18bit RGB 39PIN | -20~+70 | NO | IPS |
| 4.0 | 480*480 |  |
ZW-T040HCSA-03 | 400cd/m2 | 71.86*70.18 | 74.83*78.98*2.02 | 18bit RGB | -20~+70 | NO | 方形屏/IPS |
| 4.3 | 800*480 |  |
ZW-T043BWSA-02 | 500cd/m2 | 95.04*53.86 | 105.50*67.20*3.00 | 24bit RGB | -20~+70 | NO | IPS/高亮 |
| 4.3 | 480*272 |  |
ZW-T043HPWA-03 | 1000cd/m2 | 95.04*53.86 | 105.50*67.20*2.95 | 24bit RGB 40PIN | -20~+70 | Optional | IPS/高亮 |
| 4.3 | 480*272 |  |
ZW-T043HPWA-01 | 450cd/m2 | 95.04*53.68 | 105.50*67.20*2.95 | 24bit RGB 40PIN | -30~+85 | NO | IPS/宽温 |
| 4.3 | 800*480 |  |
ZW-T043HWWA-02 | 500cd/m2 | 95.04*53.68 | 105.50*67.20*3.00 | 24bit RGB 40PIN | -30~+85 | NO | IPS/高亮/宽温 |
| 5.0 | 800*480 |  |
ZW-T050HWSA-05 | 1200cd/m2 | 108.00*64.80 | 120.70*75.80*2.65 | LVDS | -30~+80 | NO | IPS/高亮 |
| 5.5 | 1080*1980 |  |
ZW-T055AZH-01 | 800cd/m2 | 68.04*120.96 | 71.60*129.57*1.90 | MIPI 31PIN | -20~+70 | NO | IPS/高亮 |
| 6.8 | 480*1280 |  |
ZW-T068BZCA-01 | 450cd/m2 | 60.22*160.59 | 66.70*181.20*4.40 | MIPI | -20~+70 | NO | 条形屏/IPS |
| 7.0 | 1024*600 |  |
ZW-T070BAEA-01 | 400cd/m2 | 154.21*85.92 | 164.90*100.00*2.92 | 4 LANE MIPI | -20~+70 | NO | IPS/MIPI接口 |
| 7.0 | 1024*600 |  |
ZW-T070BAHA-07 | 250cd/m2 | 154.21*85.92 | 164.90*100.00*2.92 | 24bit RGB | -20~+70 | NO | IPS |
| 7.0 | 1024 x 600 |  |
ZW-T070BAHA-38CP | 420cd/m2 | 154.21*85.92 | 164.90*100.00*7.40 | LVDS | -20~+70 | C-TP | IPS/电容触摸 |
| 7.0 | 1280*800 |  |
ZW-T070TIH-01 | 400cd/m2 | 149.76*93.60 | 161.00*107.00*3.35 | ALL | -20~+70 | NO | IPS |
| 7.0 | 1024*600 |  |
ZW-T070BAHA-09 | 500cd/m2 | 154.21*85.92 | 164.80*99.80*5.65 | 8bit LVDS | -20~+70 | NO | IPS/高亮 |
| 8.0 | 1024*768 |  |
ZW-T080QXH-02 | 350cd/m2 | 154.08*85.92 | 174.00*136.00*2.45 | LVDS 40PIN | -10~+50 | NO | IPS |
| 8.0 | 800*1280 |  |
ZW-T080QYH-01 | 420cd/m2 | 107.64*172.22 | 114.70*184.20*2.00 | 4 LANE MIPI 40PIN | -10~+50 | NO | IPS |
| 10.1 | 1280*800 |  |
ZW-T101QIH-04 | 280cd/m2 | 216.96*135.60 | 229.34*148.98*2.50 | LVDS 40PIN | -20~+70 | NO | IPS |
| 10.1 | 1024*600 |  |
ZW-T101BAHA-01 | 500cd/m2 | 222.72*125.28 | 234.99*143.00*5.20 | LVDS 40PIN | -20~+70 | NO | IPS/高亮 |
| 10.1 | 1280*800 |  |
ZW-T101QIH-39CP | 230cd/m2 | 216.96*135.60 | 240.00*163.50*5.00 | HDMI | -20~+70 | C-TP | IPS/电容触摸 |
| 10.1 | 1280*800 |  |
ZW-T101QIH-30 | 1000cd/m2 | 216.96*135.60 | 229.46*149.10*4.80 | LVDS 40PIN | -20~+70 | NO | IPS/高亮 |
| 10.1 | 800*1280 |  |
ZW-T101BYH-01CP | 720cd/m2 | 135.36*216.58 | 168.73*254.50*8.10 | MIPI | -20~+70 | C-TP | IPS/高亮 |
