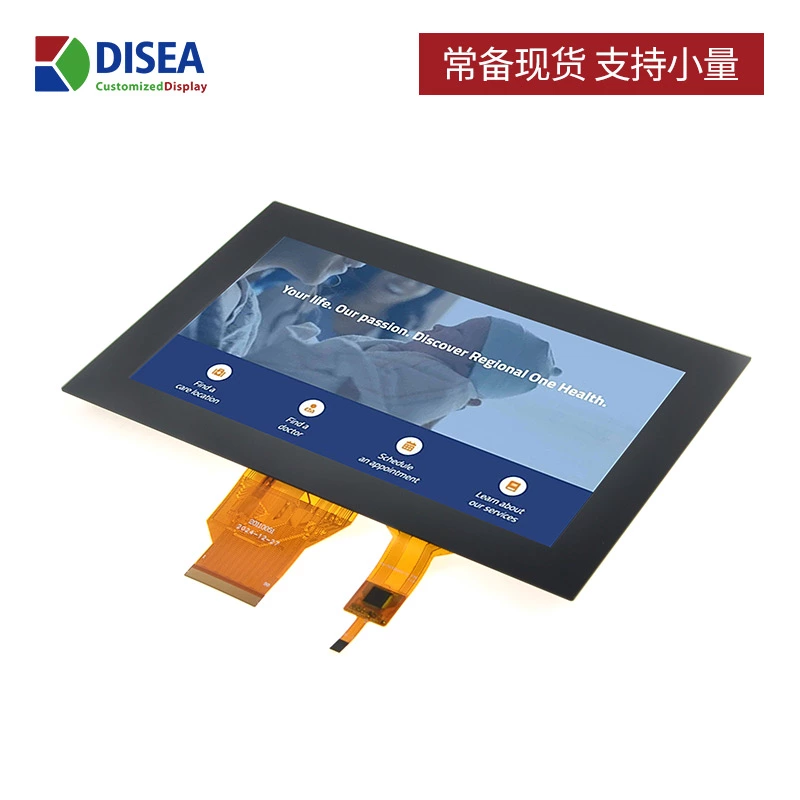

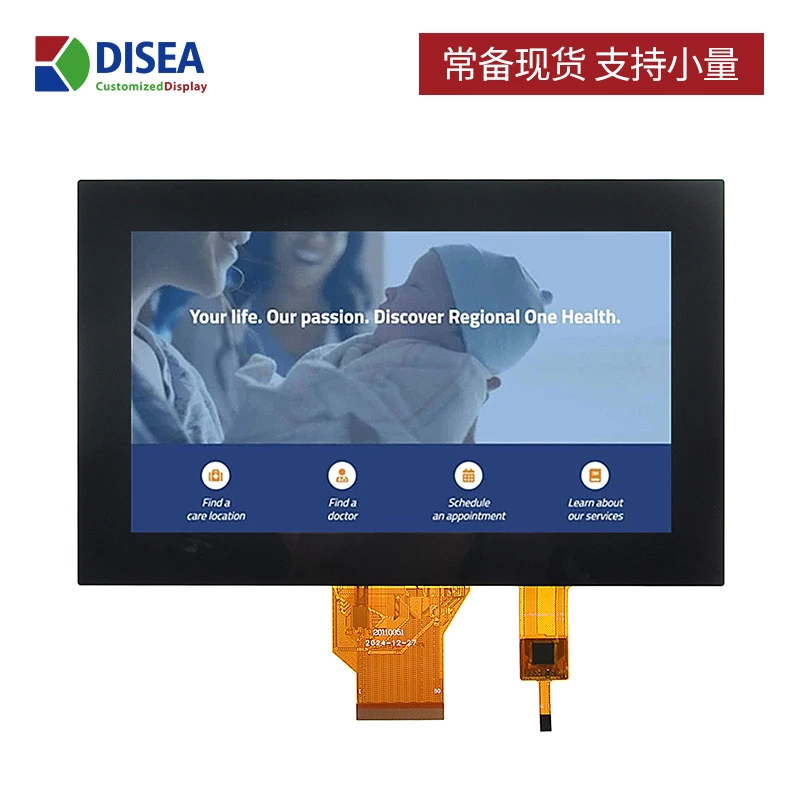

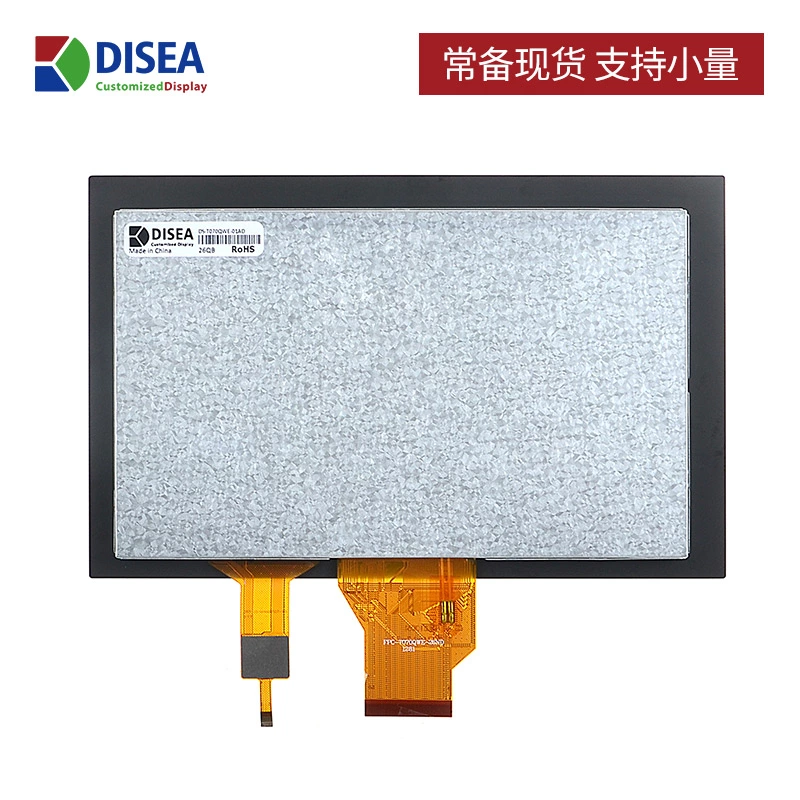

型号为DS-T070QWE-01ND的是一款7.0寸TN TFT LCD液晶屏，支持电容触摸，分辨率800*480，亮度250cd/m²，支持24BIT RGB通讯接口。
LCD Parameter
| Item | Contents | Unit |
|---|---|---|
| LCD Type | TFT | |
| Display color | 16.7 | |
| Viewing Direction | 12 | O'Clock |
| Grayscale inversion direction | 6 | O'Clock |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | 7 | inch |
| Active Area(W×H) | 154.08×85.92 | mm |
| Number of Dots | 800×480 | dots |
| Controller | EK9713CA/EK73002AB2 | |
| Power Supply Voltage | 3.3 | V |

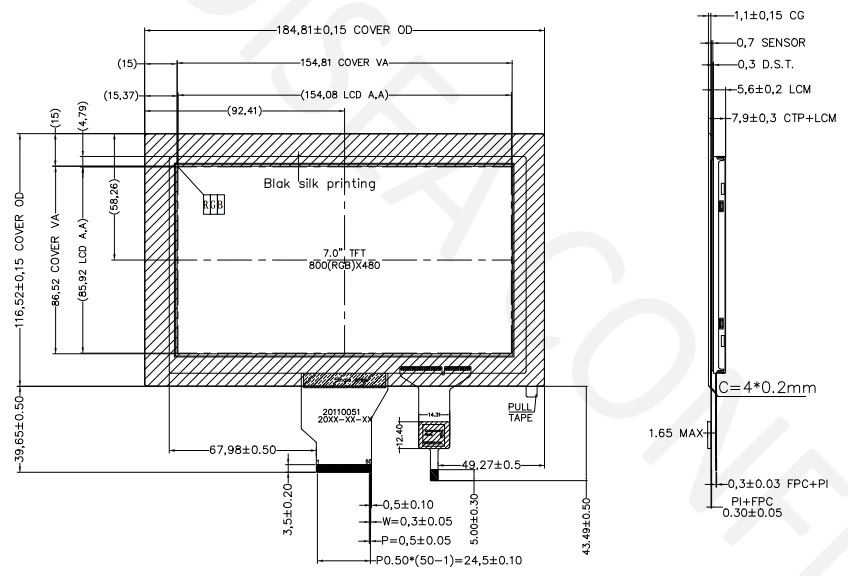

| Outline Dimensions | 184.08×116.52×7.90 | mm |
| Backlight | 3x6-LEDs(white) | pcs |
| Lcm luminance | 250 | cd/m² |
| Interface | 24BIT RGB |
CTP Parameter
| Item | Contents | Unit |
|---|---|---|
| Cover View Area | 154.08(H)×85.92(V) | |
| CTP Resolution | 800×480 | dots |
| Interface Mode | IIC | |
| Touch Mode | 5 Human fingers multi-touch | |
| Surface hardness | 6H | |
| Transparency | >=85% | |
| Accuracy | Centre +/-1.5,Edge+/-2.5mm | mm |
| CTP Controller | ST1633i | |
| Power Supply Voltage | 3.3 | V |
库存和定制
请咨询我们的产品库存。在大多数情况下，客户需要定制自己的产品。我们经验丰富的项目经理可以帮助您评估项目，推荐最合适的产品，或提出最合理的定制建议。评估是免费的，我们很乐意帮助您，即使您最终没有选择我们。
